AI Integration in the Metaverse with XR Creator Studio

The AI Integration Microservice provides a centralized solution for connecting AI agents in the metaverse to providers such as OpenAI and Azure AI.

To build an AI-powered agent in XR Creator Studio, you’ll need to connect a supported AI model (from OpenAI or Azure) by configuring the API key, assistant ID, or endpoint.

Create an AI Agent with Azure AI Completion

Step 1: Find the API Key and Endpoint in Azure OpenAI Playground

• Visit: https://oai.azure.com/portal (Or go to the Azure portal, navigate to your OpenAI resource, and click "Playground" in the sidebar.)

Step 2: Open the Playground Settings

• In the top-right corner of the Playground, click the "View Code" button.
• This opens a panel showing how to call the current model via API.

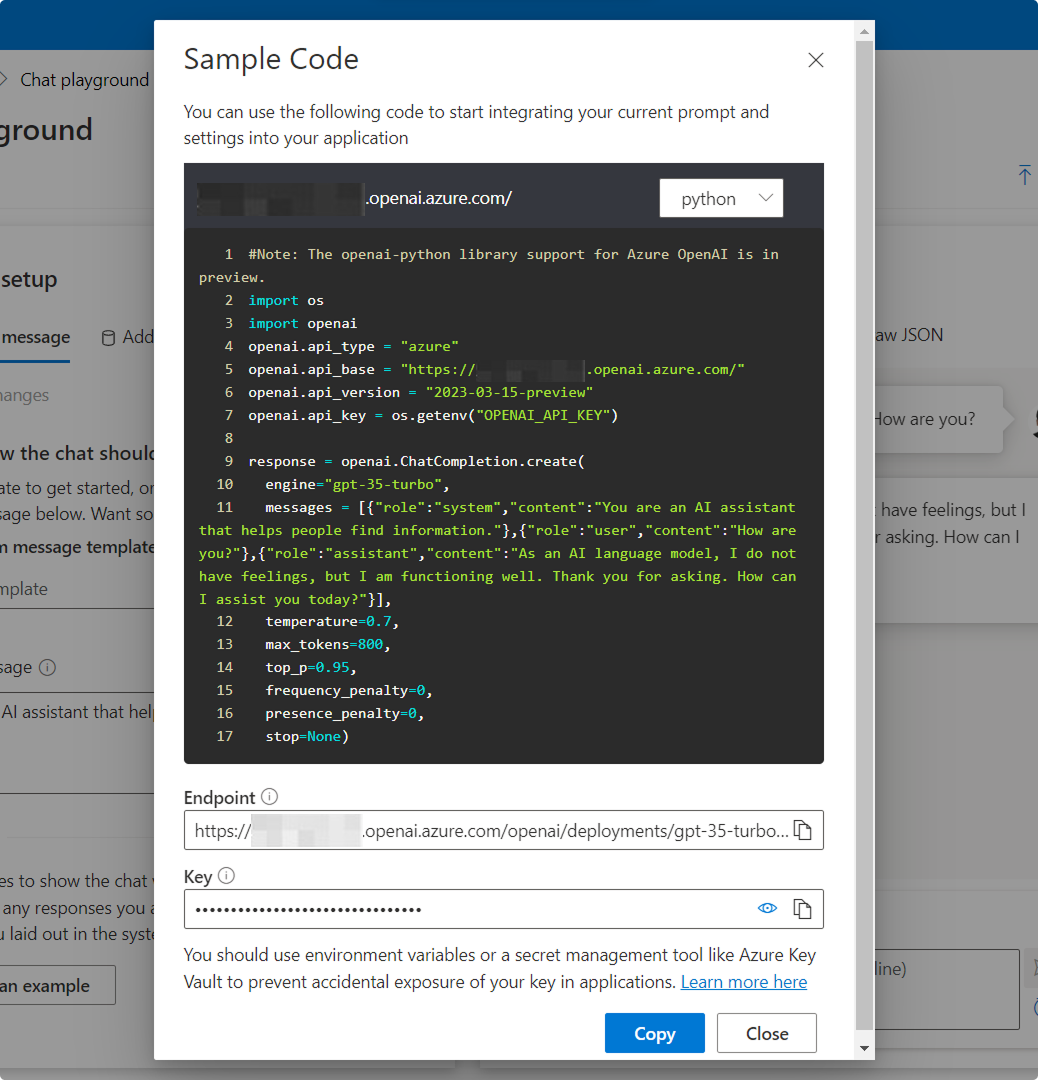

Step 3: Get Your Endpoint and API Key

The Endpoint and Key field represent the secret tokens used to authenticate your API requests to the Azure OpenAI service.

• In the View Code panel, locate the endpoint URL and Key:

  • Endpoint: The full URL that your application uses to send requests (including the deployment name and API version).

  • Key: A sensitive API key used to authorize those requests.

Example of Endpoint Usage (for Completions)

Replace <your-resource-name> and <deployment-id> with your actual values in the following format:

https://<your-resource-name>.openai.azure.com/openai/deployments/<deployment-id>/completions?api-version=2023-05-15

Step 4: Find the Deployment Name

• At the top of the Playground, check the Model dropdown.
• The selected value is your Deployment ID (e.g., gpt-35-turbo).
• This should match the deployment name used in your endpoint URL.

Step 5: Integrate Your Azure AI Agent with XR Creator Studio

Once you’ve set up an Azure AI assistant, you can integrate it into your XR project.

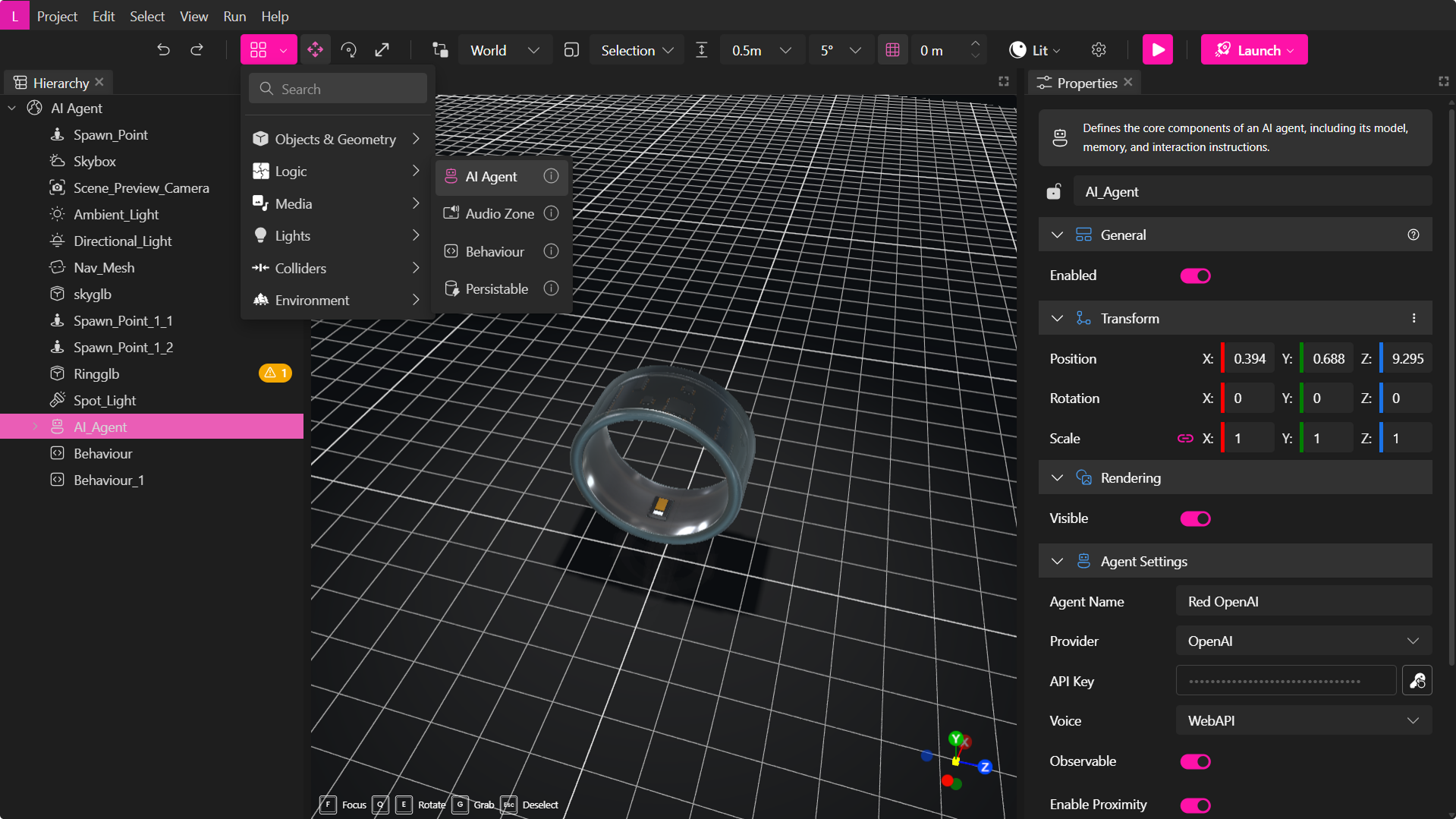

1. Add an AI Agent Element in XR Creator

1. Open your project in the XR Editor.
2. In the Elements Menu, select AI Agent.

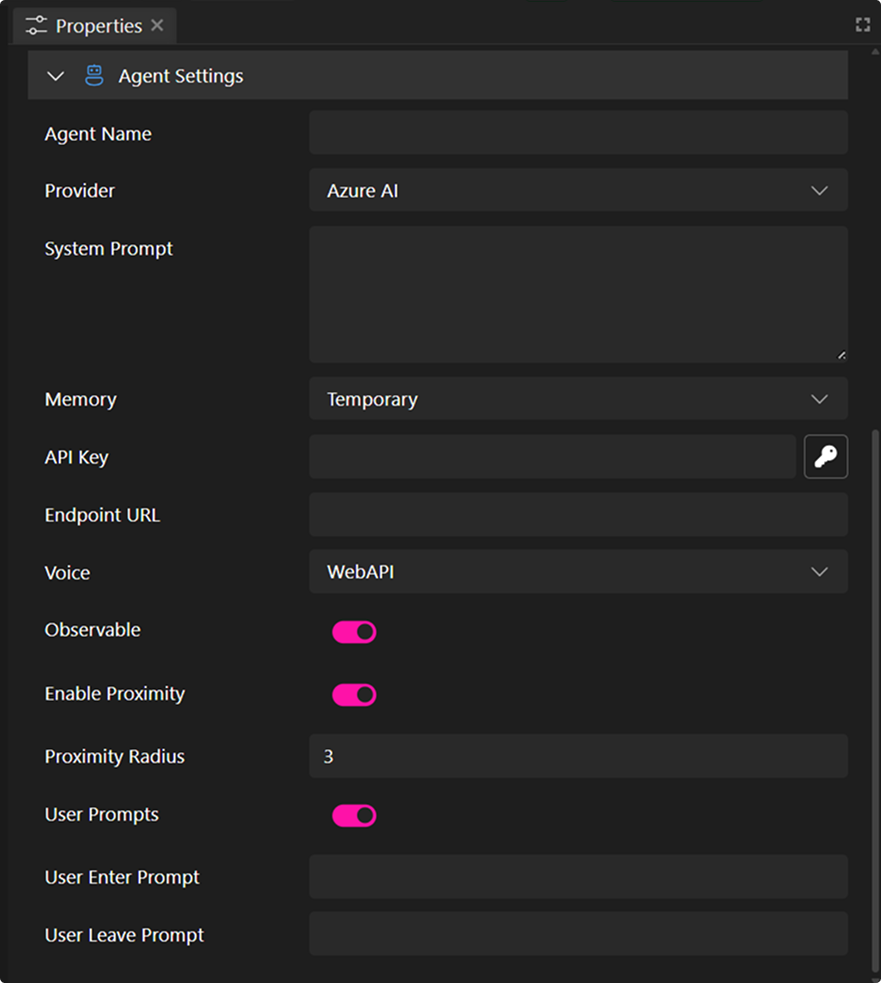

2. Configure AI Agent Properties to Connect to Azure AI

In the Properties Panel, you can set parameters to connect your AI Agent.

• Agent Name: This name will appear in the chat interface.
• Provider: Select the AI service. In this case, select the Azure AI Completion option.
• System Prompt: Instructions defining the AI's role, personality, or constraints (e.g., "You are a helpful assistant specializing in company products."). Max length ~4000 characters. This field is optional.
• Memory: Defines the type of memory your completion agent can use. By default, it operates with temporary volatile memory, meaning the agent retains chat history only during your session. Once you leave, the memory is erased. Alternatively, you can enable persistable memory, allowing the agent to maintain chat history across sessions.
• API Key: Enter your secret API key securely.
• Endpoint: (Required for Azure AI provider) The specific endpoint URL for your Azure OpenAI deployment. Which you can find in the Playground.
• Voice Options:
  • WebAPI – Uses browser-based text-to-speech (varies by browser).
  • Silent – The agent will only communicate via text chat.
• Observable (Emit Events): Enable this option to trigger in-world scripting events. These are especially useful when working with our Scripting API. See more in the AI Agent Event System guide.
• Enable Proximity: The agent can detect when a user enters or exits a defined range.
  • Proximity Radius: Sets the distance (in meters/units) around the agent where proximity events (like user-enter or user-leave) are triggered.
    • User Prompts: Enable this to allow the agent to show custom messages when users enter or leave its proximity.
      • User Enter Prompt: The message the agent will say or display when a user enters the defined proximity radius.
      • User Leave Prompt: The message the agent will say or display when a user exits the proximity radius. Only the the API Key and the endpoint are not optional. Once your properties are set up, you can publish your project and have a fully functional Agent.

Create an AI Agent with OpenAI Completion

Follow these steps to set up an Agent with OpenAI completion.

Step 1: Create an OpenAI Account

• Visit the OpenAI Signup Page and register an account.

Step 2: Generate an OpenAI API Key

1. Go to the OpenAI Dashboard.
2. Navigate to the API Keys Section.
3. Click Create new secret key.
4. Provide a name tag, select a project, and set security permissions.
5. Copy and store your API key safely, as it will not be shown again.

Once you’ve set up an OpenAI assistant, you can integrate it into your XR project.

Step 3: Integrate Your OpenAI Agent with XR Creator Studio

1. Add an AI Agent Element in XR Creator

1. Open your project in the XR Editor.
2. In the Elements Menu, select AI Agent.

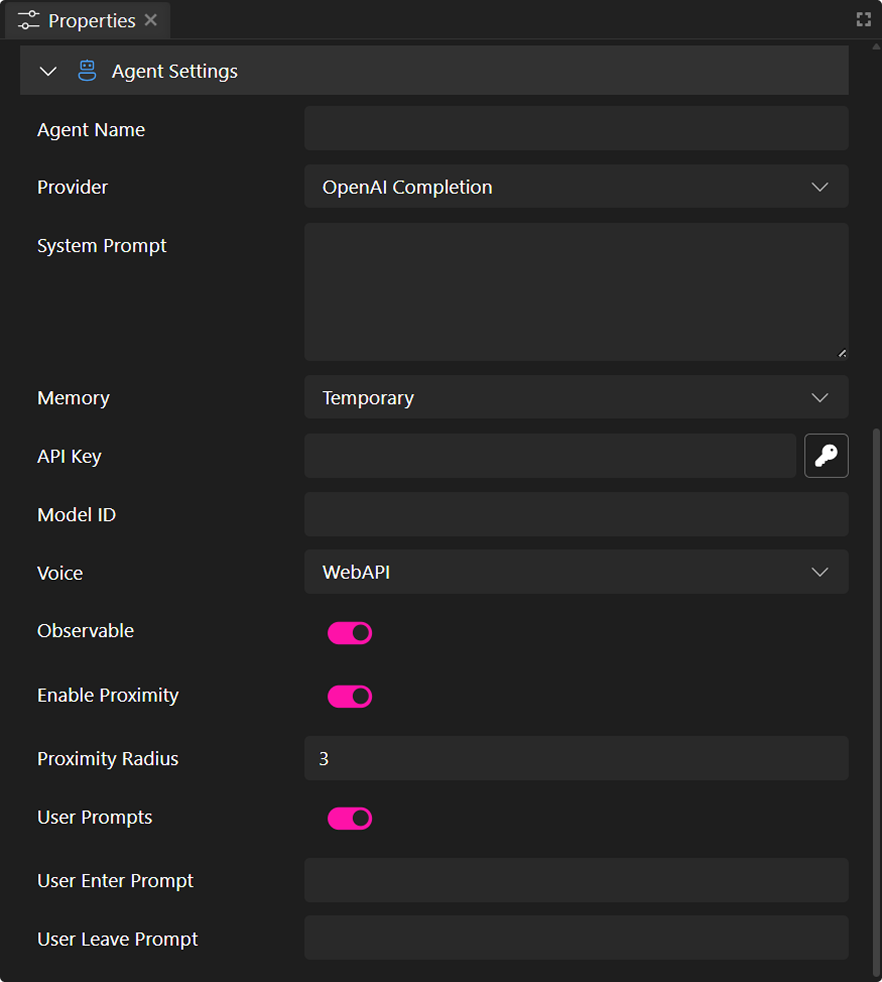

2. Configure AI Agent Properties

In the Properties Panel, you can set parameters to connect your assistant.

• Agent Name: This name will appear in the chat interface.
• Provider: Select the AI service, in this case, OpenAI Completion.
• System Prompt: Instructions defining the AI's role, personality, or constraints (e.g., "You are a helpful assistant specializing in company products."). Max length ~4000 characters. This field is optional.
• Memory: Defines the type of memory your completion agent can use. By default, it operates with temporary volatile memory, meaning the agent retains chat history only during your session. Once you leave, the memory is erased. Alternatively, you can enable persistable memory, allowing the agent to maintain chat history across sessions.
• API Key: Enter your secret API key securely.
• Model Name: (Required for OpenAI Completion provider) The specific OpenAI model to use (e.g., gpt-3.5-turbo, gpt-4, etc).
• Voice Options:
  • OpenAI – Uses OpenAI’s voice generation.
  • WebAPI – Uses browser-based text-to-speech (varies by browser).
  • Silent – The agent will only communicate via text chat.
• Emit Events: Enable this to trigger in-world scripting events.
• Observable (Emit Events): Enable this option to trigger in-world scripting events. These are especially useful when working with our Scripting API. See more in the AI Agent Event System guide.
• Enable Proximity: The agent can detect when a user enters or exits a defined range.
  • Proximity Radius: Sets the distance (in meters/units) around the agent where proximity events (like user-enter or user-leave) are triggered.
    • User Prompts: Enable this to allow the agent to show custom messages when users enter or leave its proximity.
      • User Enter Prompt: The message the agent will say or display when a user enters the defined proximity radius.
      • User Leave Prompt: The message the agent will say or display when a user exits the proximity radius.

Only the the OpenAI API Key and the Model ID are not optional. Once your properties are set up, you can publish your project and have a fully functional Agent.

Set Up an AI Agent Using OpenAI Assistants

Follow these steps to set up an assistant in OpenAI to power your AI agent in the metaverse. This approach allows you to upload files, enhancing your assistant's knowledge and contextual understanding.

1. Create an OpenAI Account

• Visit the OpenAI Signup Page and register an account.

2. Generate an OpenAI API Key

1. Go to the OpenAI Dashboard.
2. Navigate to the API Keys Section.
3. Click Create new secret key.
4. Provide a name tag, select a project, and set security permissions.
5. Copy and store your API key safely, as it will not be shown again.

3. Create an Assistant

1. Open the Assistant Page.
2. Click Create to start a new assistant.

3. Enter a name and provide system instructions (up to 256,000 characters).
4. Upload necessary files for the assistant’s knowledge base.
5. Enable the File Search tool for retrieving information.

6. Copy the Assistant ID for future use, you can find it below the name of your assistant.

Step 4: Integrate Your OpenAI Assistant with XR Creator Studio

Once you’ve set up an OpenAI assistant, you can integrate it into your XR project.

1. Create an AI Agent in XR Creator

1. Open your project in the XR Editor.
2. In the Elements Menu, select AI Agent.

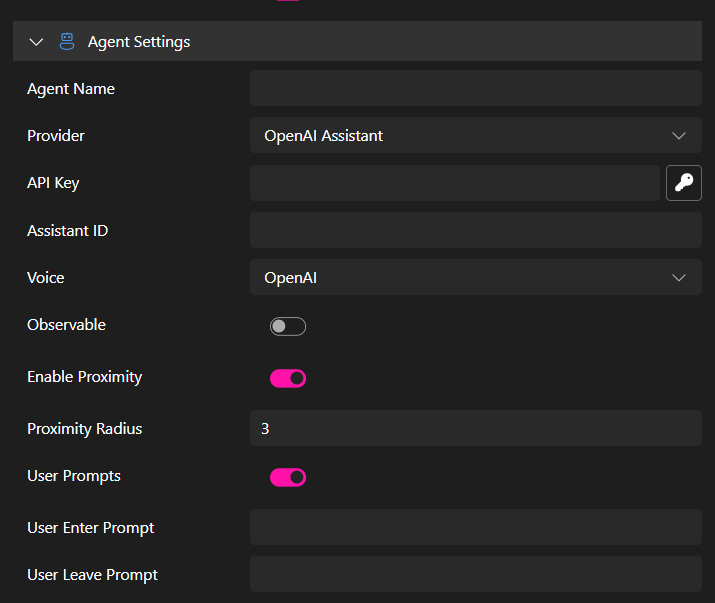

2. Configure AI Agent Properties

In the Properties Panel, you can set parameters to connect your assistant.

• Agent Name: This name will appear in the chat interface.
• Provider: Select the AI service. In this case, OpenAI Assitant.
• OpenAI API Key: Enter your secret API key securely.
• Assistant ID: This is the unique identifier (asst_...) from OpenAI. Which you can find in the Assistant page.
• Voice Options:
  • OpenAI – Uses OpenAI’s voice generation.
  • WebAPI – Uses browser-based text-to-speech (varies by browser).
  • Silent – The agent will only communicate via text chat.
• Observable (Emit Events): Enable this option to trigger in-world scripting events. These are especially useful when working with our Scripting API. See more in the AI Agent Event System guide.
• Enable Proximity: The agent can detect when a user enters or exits a defined range.
  • Proximity Radius: Sets the distance (in meters/units) around the agent where proximity events (like user-enter or user-leave) are triggered.
    • User Prompts: Enable this to allow the agent to show custom messages when users enter or leave its proximity.
      • User Enter Prompt: The message the agent will say or display when a user enters the defined proximity radius.
      • User Leave Prompt: The message the agent will say or display when a user exits the proximity radius.

Only the the OpenAI API Key and the Assistant ID are not optional. Once your properties are set up, you can publish your project and have a fully functional Agent.

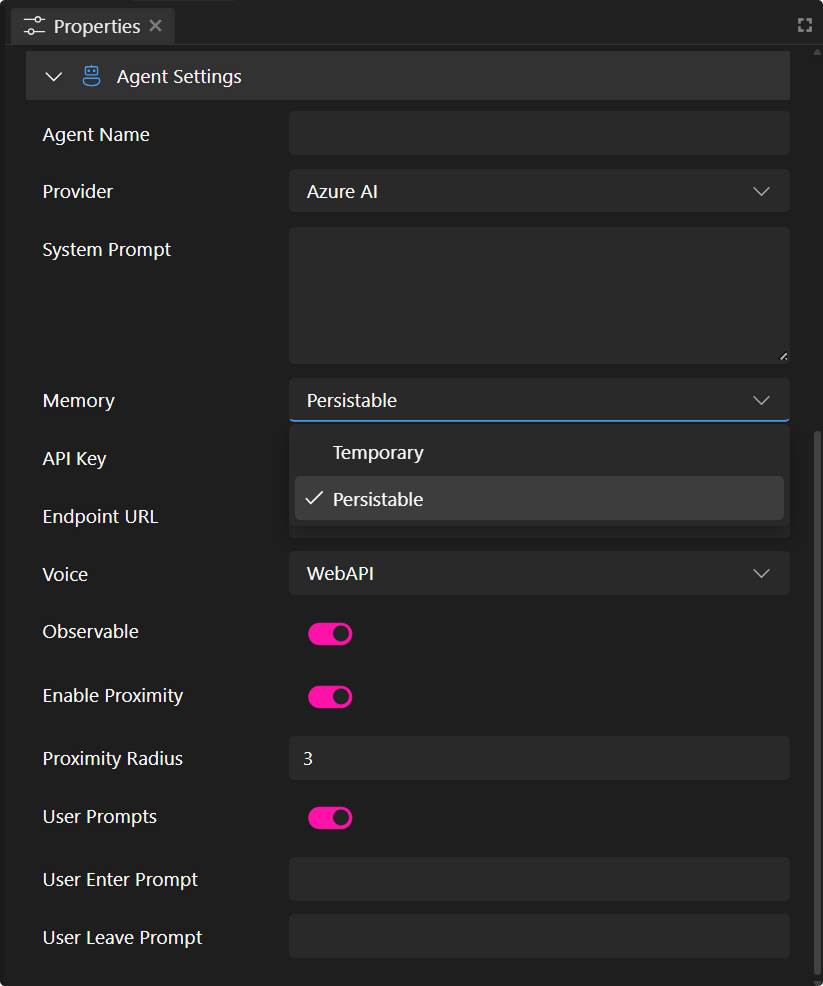

Enable Persistable Memory for Completion Agents

You can enable persistable memory for your agent, allowing it to retain chat history across conversations.

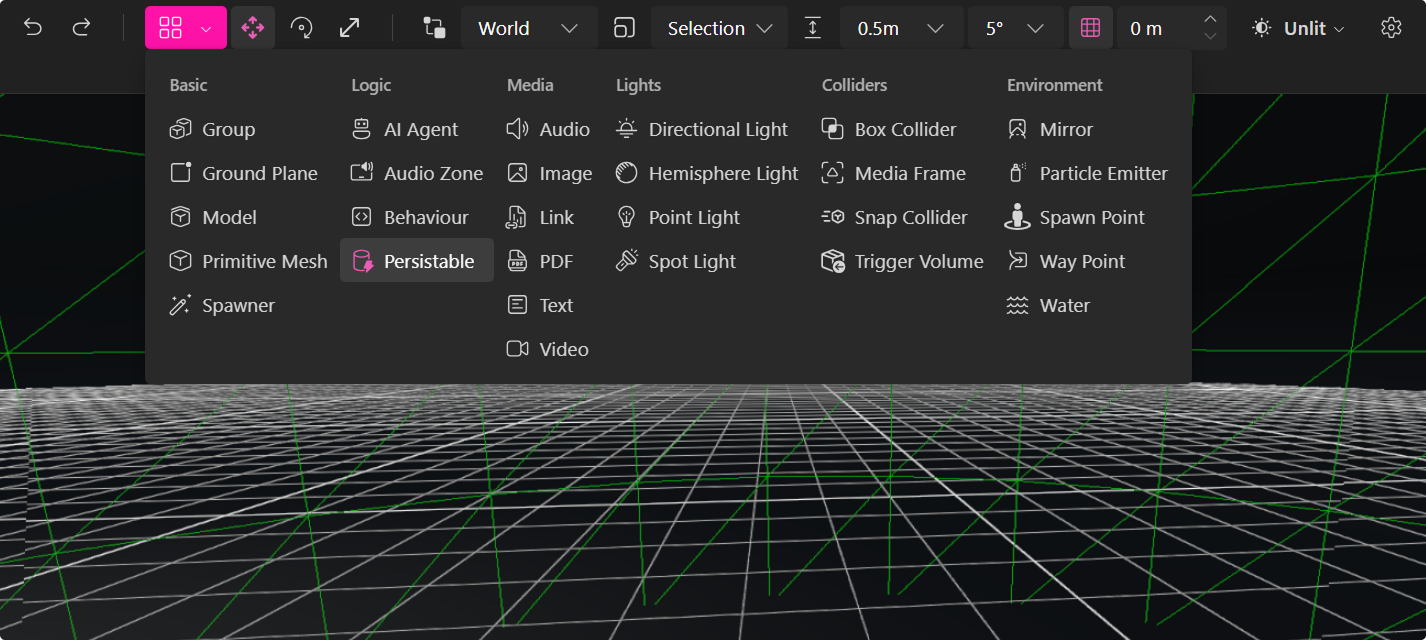

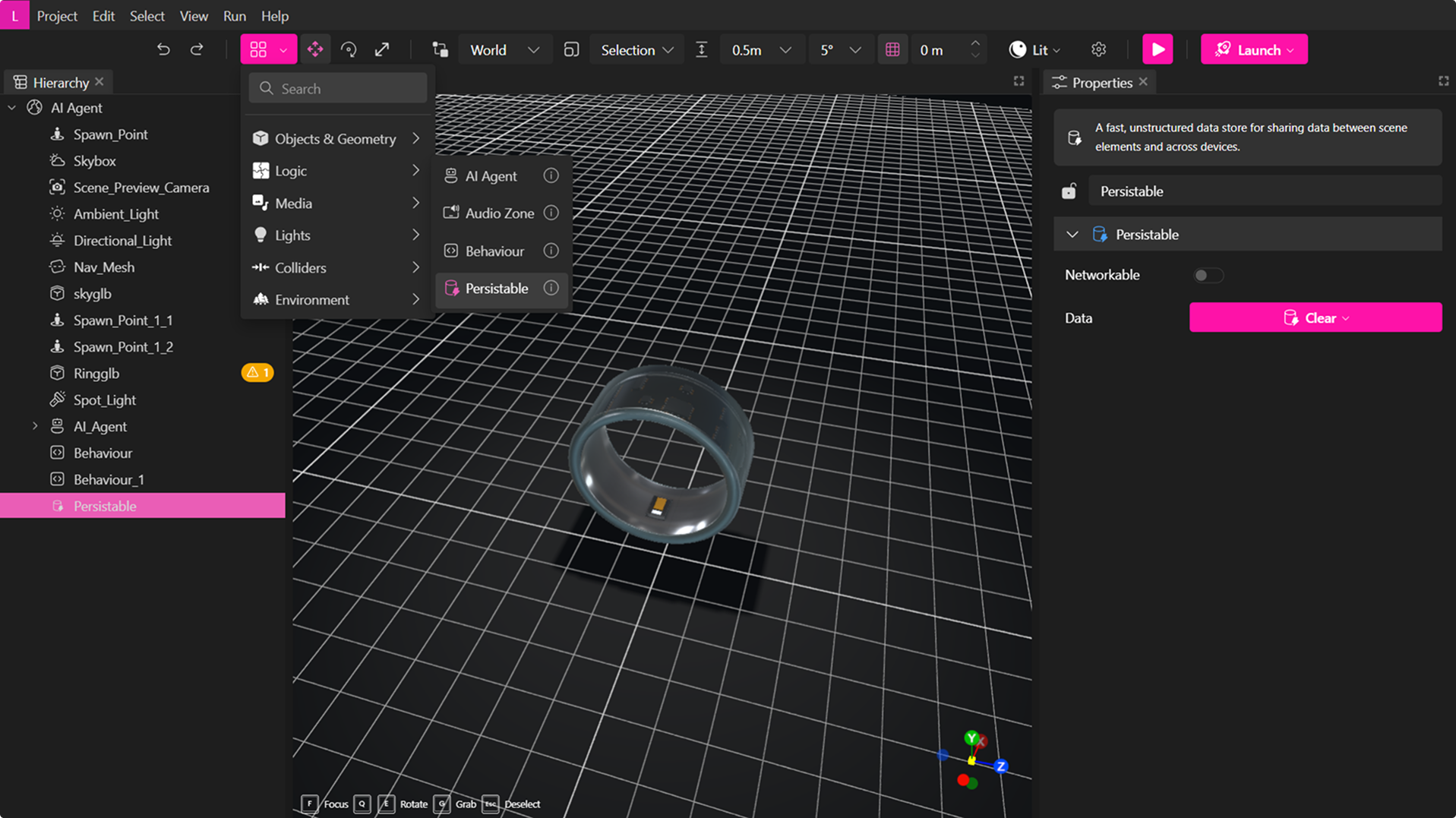

To do this, select a Persistable element from the elements dropdown, which will automatically add it to the hierarchy panel.

Next, in the agent's properties, choose the newly created persistable from the dropdown menu, then publish the verse.

This ensures your agent maintains conversation context and memory across sessions.

AI Agent Event System

When Emit Events is enabled, the AI Agent can trigger various interactions:

Event	Description
user-enter	Triggered when a user user enters the proximity region of the agent. This event is dispatched only if ‘Emit events’ is enabled and ‘Enable proximity’ is activated in the AI Agent component.
user-leave	Triggered when a user leaves the AI Agent’s proximity region. It is dispatched if 'Emit events' is enabled and ‘Enable proximity’ is being used.
agent-talk-start	Emitted when the agent begins speaking. When the audio is played with the play button, it is also emitted whenever the voice synthesis sequence starts.
agent-talk-talking	Dispatched during the agent's speech in each frame, sending the modulated amplitude of the sound wave. When subscribed to this event, the sound wave arrives as a float value as a parameter of the event handlers, amp is similar to the value used in MUDz for the scale animation of avatars when they speak. Here, we would take it to send the audio value of the agent speaking.
agent-talk-end	Triggered when the agent finishes speaking.
agent-thinking	Dispatched when the agent is thinking, i.e., when the dots are shown in the chat.

These are especially useful when working with our Scripting API.
